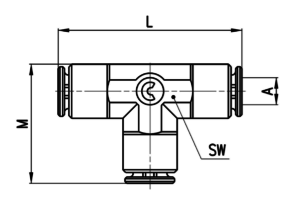

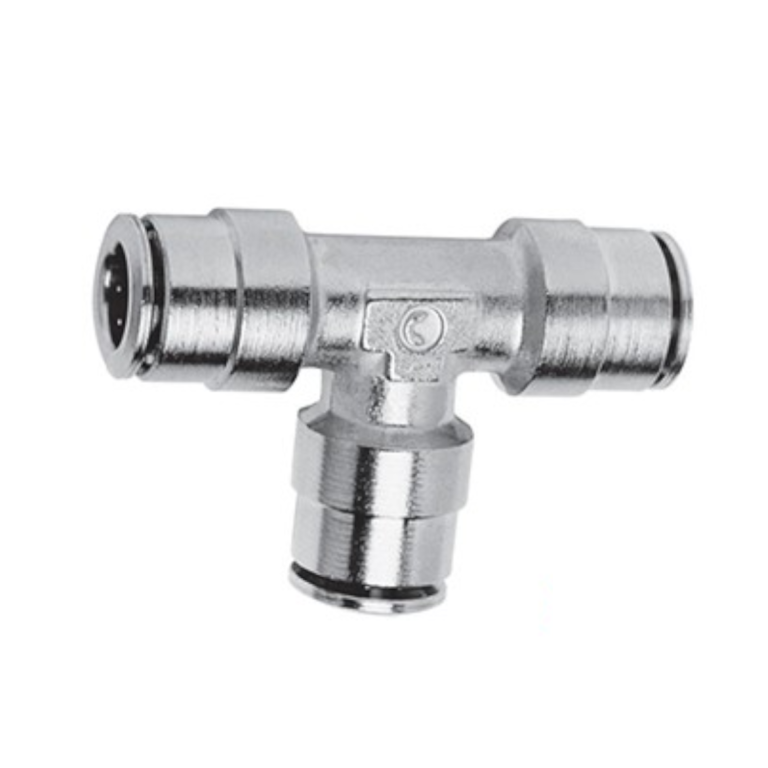

Micro Push In-Equal Tube Tee 3mm Tube
FREE UK MAINLAND DELIVERY available on orders over £150 Exclusions apply
FREE UK MAINLAND DELIVERY available on orders over £150 Exclusions apply
| Diameters | ø 4 – 5 -6 – 8 – 10 – 12 – 14 – 16 mm Micro models: ø 3 – 4 – 6 – 8 – 10 mm |
| Threads | GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP); M5-M6 and other metric threads available on request; NPT on request Micro models: M3 – M5 – M7 – G1/8 – G1/4 |
| Temperature | -20°C ÷ 80°C (see the technical data of tubing used) Micro models: -10°C ÷ 80°C (see the technical data of tubing used) |
| Tube to connect | Polyamide (PA) 6 – 11 – 12, Polyurethane (PU), Polyethylene (PE), hytrel Polyester |
| Fluid | compressed air (for other types of fluid, contact our engineers) |
| Materials | – standard models: body and collet in nickel-plated brass, O-Ring in NBR, thread seals in PTFE – NBR – PA – models with self-retaining device: body and collet in nickel-plated brass, poppet valve in brass, spring in stainless steel, O-Ring in NBR, thread seals in PTFE |
| Working pressure | – standard models: min -0,9 bar – max 16 bar (see tubing) – models with self-retaining device: 0 ÷ 16 bar |
