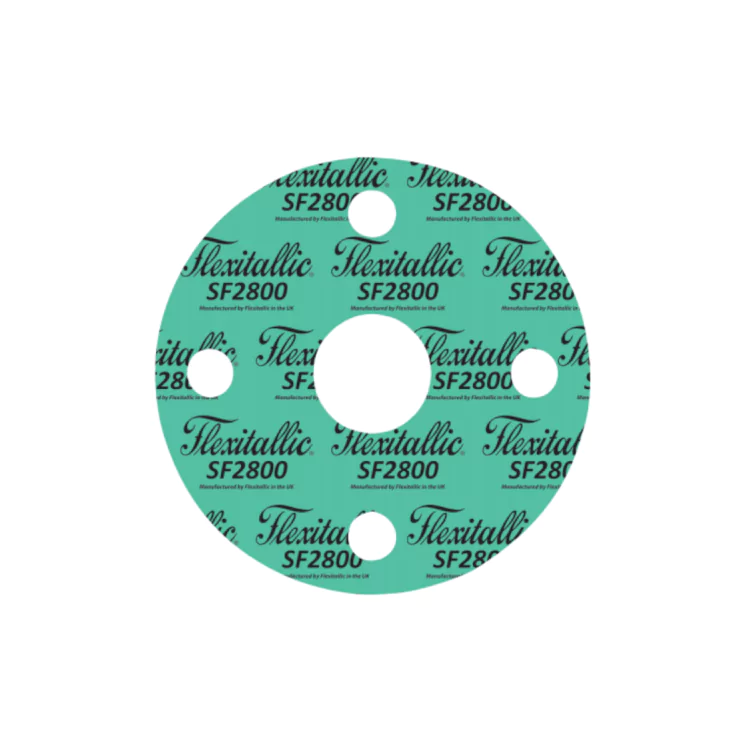

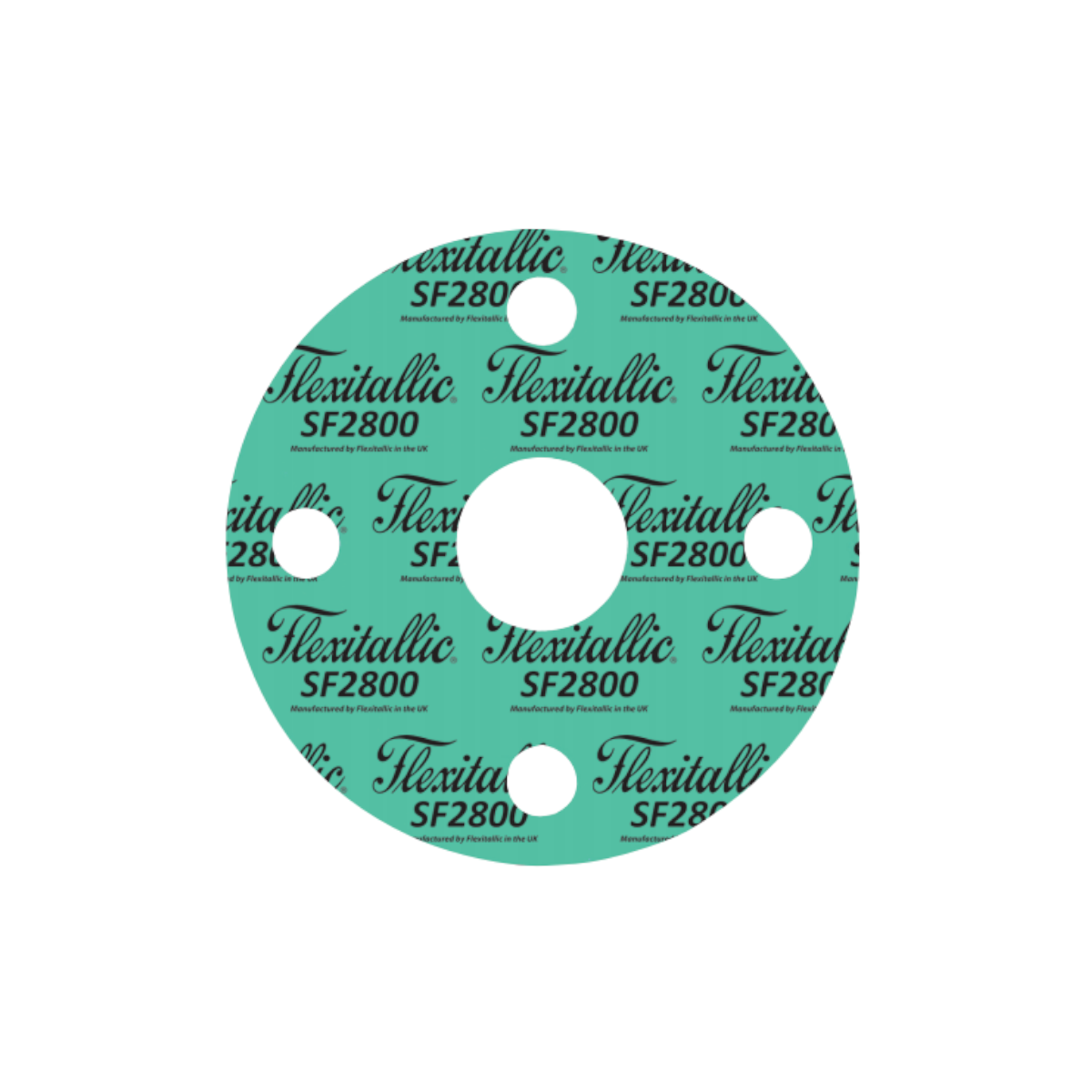

1 1/4" SF2800 Full Face BS7531 Gaskets (Grade Y) PRODUCT CODE - ASA150-1-1/4

Product Description

SF2800 is a superior material with excellent mechanical properties, it is suitable for many application including oils, water and gases.

Thickness 1.5 mm
Density 1.84 g/cc
Tensile strength ASTM F152 15MPa
Compressibility ASTM F36 7.5 %
Recovery ASTM F36 56 % min
Residual Stress BS 7531 (300o C) 24MPa
Gas Leakage BS 7531 < 0.2 ml/min
ASTM Olie 3 Thickness increase 2.0 %
ASTM brandstof B Thickness increase 3.4 %
ASTM Olie 3 Weight increase 7.4 %
ASTM brandstof B Weight increase 8.1 %
