High Pressure Poppet Valve Couplings-KM02-M-04N-115 PRODUCT CODE - KM02-M-04N-115

Product Description

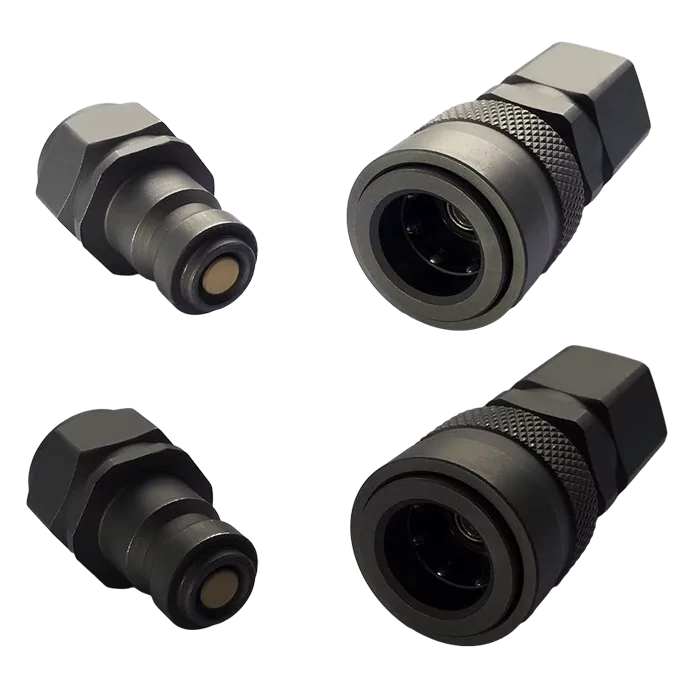

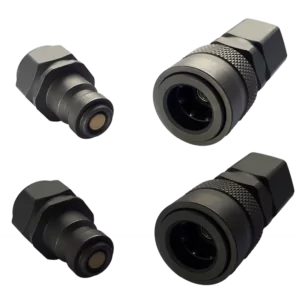

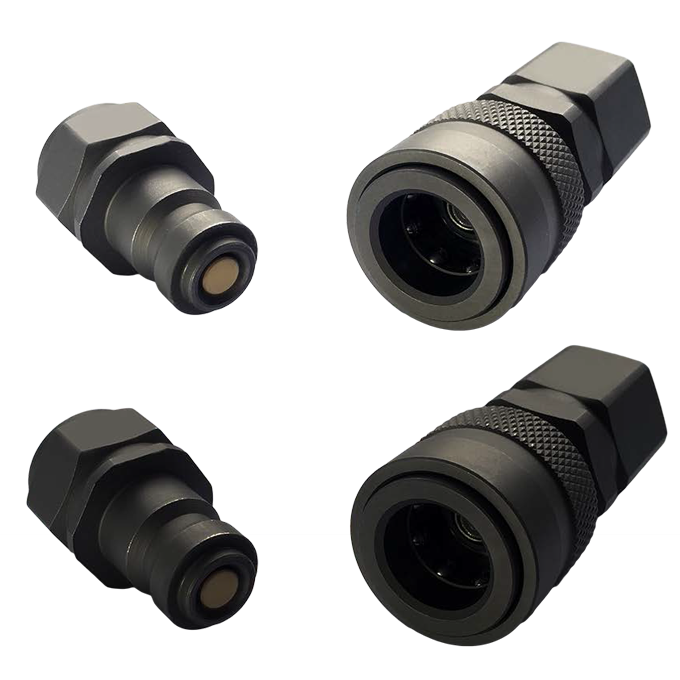

High Pressure Poppet Valve Couplings
Holmbury’s KM 115/116 Series high pressure poppet valve couplings are primarily used in bolt tensioners and other high pressure applications. The KM 116 can withstand a higher maximum working pressure than the KM 115.

CONSTRUCTION

KM 115- Carbon steel with grey zinc nickel plating (1200 hours with no red rust in salt spray tests)
KM 116- Carbon steel with black zinc nickel plating (1200 hours with no red rust in salt spray tests)
Available in size 02 body with 1/4” NPT or BSP threads
Fitted with Nitrile seals

FEATURES

1000 bar maximum working pressure (KM 115), 1500 barmaximum working pressure (KM 116)
Poppet valve design
Locking ball system allows quick connection
Bidirectional flow
Dust Caps and Plugs are available for the KM Series

SPECIFICATIONS

Operating temperatures (With Nitrile seals): -40°C (-40°F) to 106°C (223°F)

APPLICATIONS

Bolt tensioners
Hydraulic jacks
Hydraulic hammers
Other high pressure applications

ACCESSORIES

Dust Caps and Plugs are available for the KM Series
