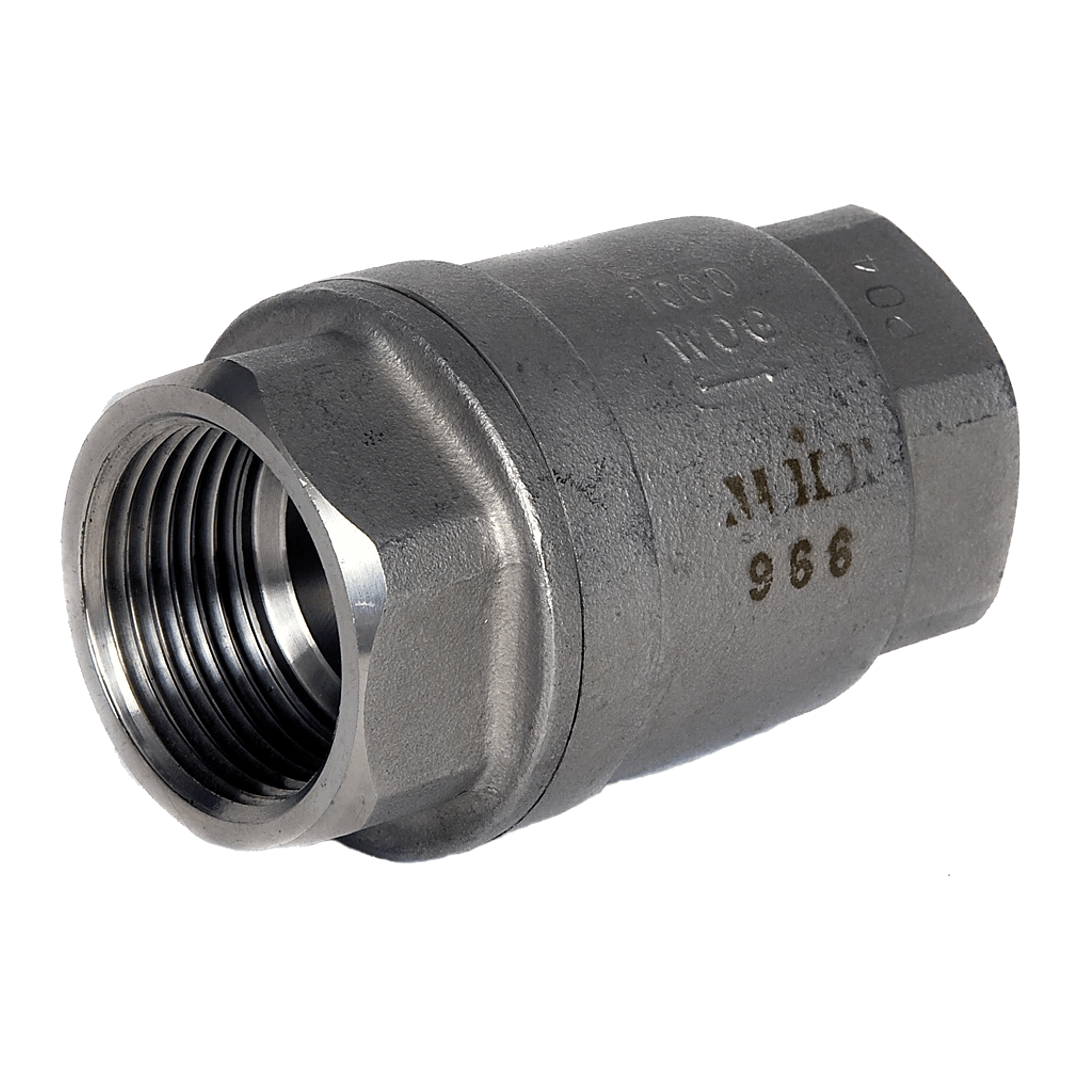

Stainless Steel Spring Check Valve With Metal Seat

Stainless Steel Spring Check Valve With Metal Seat PRODUCT CODE - ART 966

£23.43Ex. VAT – £468.28Ex. VAT£28.12Incl. VAT–£561.94Incl. VAT

Connection Type

BSPP F/F Ends

QTY

The ART 966 Stainless Steel Spring Check Valve with Metal Seat provides a compact, fast‑acting and highly durable solution for preventing reverse flow in water, air, steam and industrial process systems. Built from high‑grade stainless steel, it offers excellent resistance to corrosion, temperature variation and aggressive media, making it ideal for demanding industrial and commercial environments.

At the heart of the ART 966 is a spring‑assisted disc mechanism that opens smoothly under forward flow and snaps shut rapidly when the flow stops or reverses. This ensures quick, positive backflow protection with minimal pressure loss, even in vertical or low‑flow installations.

The metal‑to‑metal seat provides a robust sealing surface designed for high‑temperature, high‑pressure or abrasive service conditions where soft‑seated valves may degrade. This makes the ART 966 particularly suitable for applications involving steam, hot water, chemicals and other challenging media.

Pressure

82 Bar Rated (¼” – 1″)

69 Bar Rated (1¼” – 1½”)

62 Bar Rated (2″ – 4″)

 Temperature



-25°C to +180°C


Size2 1/2", 1 1/4", 1 1/2", 4", 1/4", 3/8", 1/2", 3/4", 1", 2", 3"
Pressure Rating82 Bar, 69 Bar, 62 Bar
Connection TypeBSPP F/F Ends
VersionSpring Check Valve
Body MaterialStainless Steel
