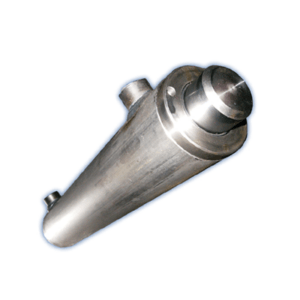

Double Acting Plain End Hydraulic Cylinder from Hydraulic Megastore

Hydraulic Megastore supply a vast range of standard double acting hydraulic cylinders. Our standard cylinders are used with many different applications from fork trucks to agricultural machinery and log splitters.

If a standard cylinder won’t suit your specific needs we’re also able to supply our own range of bespoke hydraulic cylinders. For more information about bespoke cylinders, get in touch with our sales team

HM0 series hydraulic cylinders, available from 25mm internal bore to 100mm internal bore (maximum 1000mm stroke).

Double acting (can be single acting with use of a breather plug).
Maximum working pressure – 250 bar
Maximum operating speed – 0.5 Mtr/Sec
Operating temperature- +80c to -25c
Tube material – Steel
Chrome rod material – steel

For large quantity orders, or to have bespoke hydraulic cylinders manufactured please contact our sales team.

Delivery – 3 to 4 weeks delivery from order as standard.

Product Code	Description	PriceEx. VATIncl. VAT	TotalEx. VATIncl. VAT	Quantity
Product CodeHM05400200	80mm bore x 40 mm rod x 200mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£189.92Ex. VAT£227.90Incl. VAT	£189.92Ex. VAT£227.90Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 200mm stroke double acting cylinder quantity
Product CodeHM05400250	80mm bore x 40 mm rod x 250mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£199.80Ex. VAT£239.76Incl. VAT	£199.80Ex. VAT£239.76Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 250mm stroke double acting cylinder quantity
Product CodeHM05400300	80mm bore x 40 mm rod x 300mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£208.17Ex. VAT£249.80Incl. VAT	£208.17Ex. VAT£249.80Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 300mm stroke double acting cylinder quantity
Product CodeHM05400400	80mm bore x 40 mm rod x 400mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£236.77Ex. VAT£284.12Incl. VAT	£236.77Ex. VAT£284.12Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 400mm stroke double acting cylinder quantity
Product CodeHM05400500	80mm bore x 40 mm rod x 500mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£244.80Ex. VAT£293.76Incl. VAT	£244.80Ex. VAT£293.76Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 500mm stroke double acting cylinder quantity
Product CodeHM05400600	80mm bore x 40 mm rod x 600mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£263.11Ex. VAT£315.73Incl. VAT	£263.11Ex. VAT£315.73Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 600mm stroke double acting cylinder quantity
Product CodeHM05400700	80mm bore x 40 mm rod x 700mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£276.99Ex. VAT£332.39Incl. VAT	£276.99Ex. VAT£332.39Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 700mm stroke double acting cylinder quantity
Product CodeHM05400800	80mm bore x 40 mm rod x 800mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£319.14Ex. VAT£382.97Incl. VAT	£319.14Ex. VAT£382.97Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 800mm stroke double acting cylinder quantity
Product CodeHM05401000	80mm bore x 40 mm rod x 1000mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£336.00Ex. VAT£403.20Incl. VAT	£336.00Ex. VAT£403.20Incl. VAT	QUANTITYQTY 80mm bore x 40 mm rod x 1000mm stroke double acting cylinder quantity
Product CodeHM05500200	80mm bore x 50 mm rod x 200mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£209.44Ex. VAT£251.33Incl. VAT	£209.44Ex. VAT£251.33Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 200mm stroke double acting cylinder quantity
Product CodeHM05500250	80mm bore x 50 mm rod x 250mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£221.58Ex. VAT£265.90Incl. VAT	£221.58Ex. VAT£265.90Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 250mm stroke double acting cylinder quantity
Product CodeHM05500300	80mm bore x 50 mm rod x 300mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£242.54Ex. VAT£291.05Incl. VAT	£242.54Ex. VAT£291.05Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 300mm stroke double acting cylinder quantity
Product CodeHM05500400	80mm bore x 50 mm rod x 400mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£255.06Ex. VAT£306.07Incl. VAT	£255.06Ex. VAT£306.07Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 400mm stroke double acting cylinder quantity
Product CodeHM05500500	80mm bore x 50 mm rod x 500mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£277.87Ex. VAT£333.44Incl. VAT	£277.87Ex. VAT£333.44Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 500mm stroke double acting cylinder quantity
Product CodeHM05500600	80mm bore x 50 mm rod x 600mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£300.69Ex. VAT£360.83Incl. VAT	£300.69Ex. VAT£360.83Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 600mm stroke double acting cylinder quantity
Product CodeHM05500700	80mm bore x 50 mm rod x 700mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£318.33Ex. VAT£382.00Incl. VAT	£318.33Ex. VAT£382.00Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 700mm stroke double acting cylinder quantity
Product CodeHM05500800	80mm bore x 50 mm rod x 800mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£346.01Ex. VAT£415.21Incl. VAT	£346.01Ex. VAT£415.21Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 800mm stroke double acting cylinder quantity
Product CodeHM05501000	80mm bore x 50 mm rod x 1000mm stroke double acting cylinder Delivery time: Approx 2-3 weeks	£362.14Ex. VAT£434.57Incl. VAT	£362.14Ex. VAT£434.57Incl. VAT	QUANTITYQTY 80mm bore x 50 mm rod x 1000mm stroke double acting cylinder quantity
