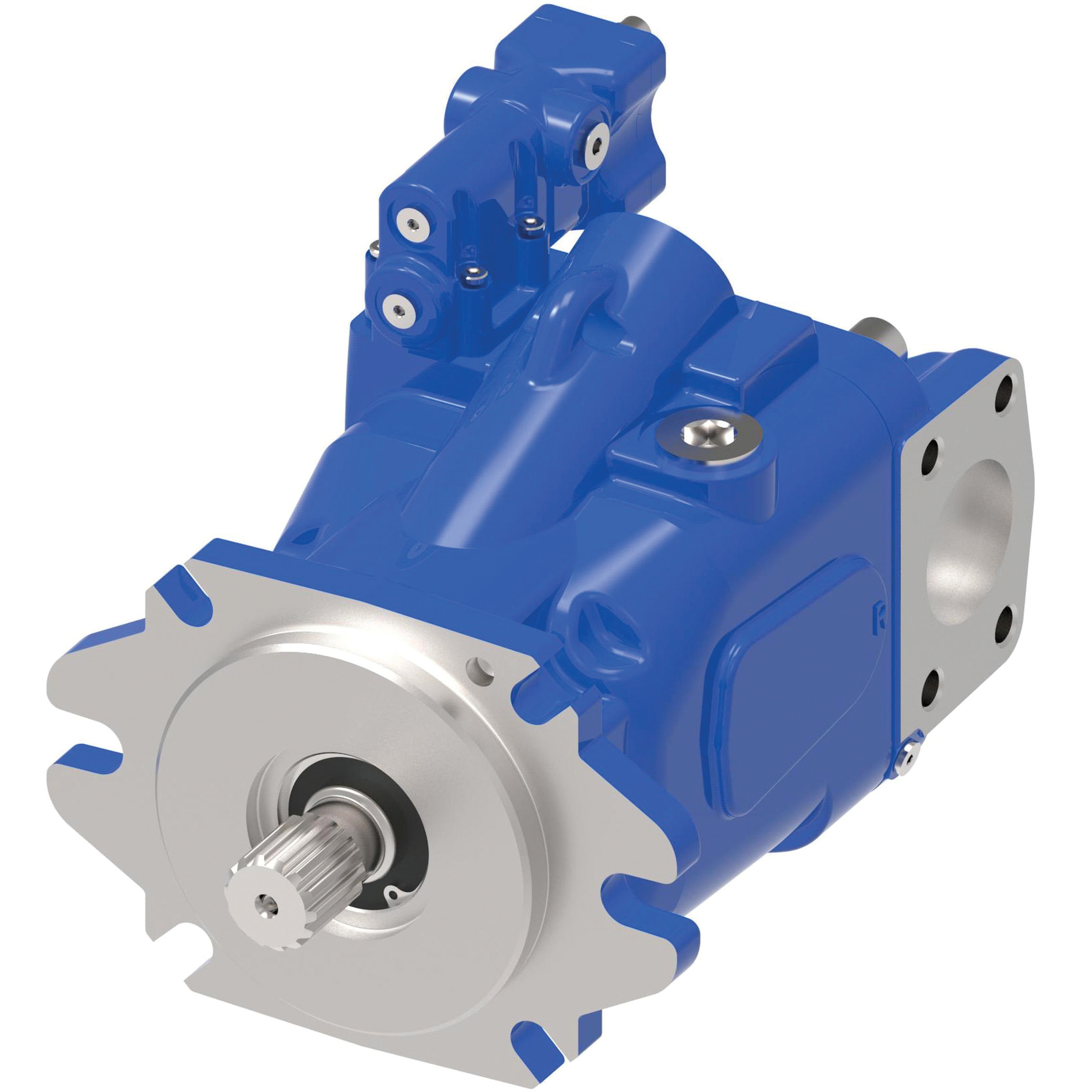

62.3cc/rev 420 Series Mobile Piston Pump PRODUCT CODE - 421AK00807C
£1,382.40Ex. VAT£1,658.88Incl. VAT
View other size optionsThe Eaton® 420 portfolio of open-circuit piston pumps is built to maximize machine performance and productivity. With sophisticated controls that enhance system efficiency and a compact design that delivers incredible power, the 420 portfolio empowers mobile machine operators to do more work in less time using less fuel.
Product Description
| Full manufacturer part number: ADU062R08AA10AA432400000200100CD00C | |
| Pump series | 420 Series open circuit piston pump |
| Pump displacement | 62.3cc/rev |
| Input shaft rotation | Right hand |
| Front mount and shaft | 2 Bolt B / 15 tooth 16/32 spline |
| Main ports size & location | Rear ported Suction – 2” Code 61 (3000 PSI) Pressure – 1” Code 61 (3000 PSI) |
| Case drain port | -12 SAE o-ring (top) |
| Diagnostic pressure ports not available on thru-drive units | No diagnostic pressure ports |
| Controller type | Pressure flow compensator with -4 SAE o-ring load sense port (left side) |
| Pressure compensator setting | 276-283 bar [4000-4100 psi] |
| Flow compensator / remote pressure control setting | 23-26 bar [330-370 psi] |
| Torque control setting | No torque control |
| Control special features | Control special features |
| Maximum displacement option | External manual stroke adjustment set at max |
| Auxiliary (rear) mount & output shaft | No auxiliary mounting features |
| Shaft seal | Standard polyacrylate shaft seal |
| Pump special features | No special features |
| Paint | Blue primer |
| Identification/packaging | Standard Eaton identification box packaging |
| Design level | Third design |
