DC P&T - Mini Power Pack PRODUCT CODE - HPMXXX25WHSNNXXXN

£288.00Ex. VAT – £296.00Ex. VAT£345.60Incl. VAT–£355.20Incl. VAT

Features
  • 5.8 Litres per minute
  • 180 bar max working pressure
  • Only 10kg
  • Horizontal build
QTY

Hydraulic Megastore offer a range of Pressure and Tank circuit power packs, can’t find the spec you’re looking for? We can build power packs to your exact specification, every part on the pack can be changed to suit you.

This configuration (DC P&T – Mini Power Pack) is typically used where other control valves are present on the machine already, this system allows for supply of oil at a max rate of 5.8 litres per minute at a maximum pressure of 180 bar. Typically found on some of the below applications.

All power packs are built to order, typically delivery time is around 3-5 working days for this unit. Should you need it sooner please contact our sales team.

Do you need more than 1? – We can accommodate for batch orders of hundreds at a time with our streamline manufacturing process – speak to our sales team for further information.

Contact Us



All Features Typical Applications
  • Mini pack
  • 12v DC 1.8kW or 24V DC 2.0kW motor with start solenoid and thermal cut out
  • 2.5cc/rev pump
  • Horizontal build
  • Central manifold with relief valve, check valve and 1/4″ BSP ports
  • 5 or 8 litre plastic tank with filler breather
  • 5.8 LPM
  • 180 Bar
  • Assembled weight approx. 10kg
  • Plant trailers
  • Battery changers
  • Vehicle dismantling
  • Construction

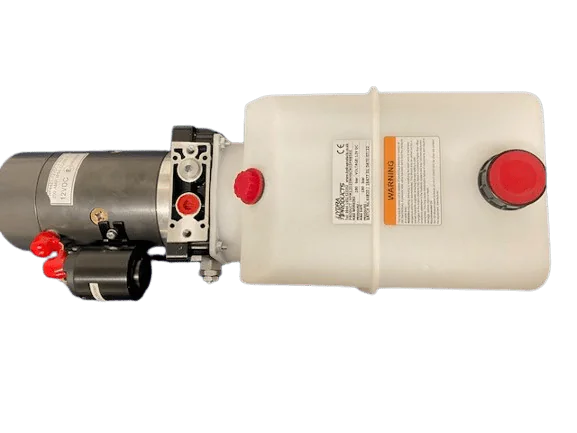

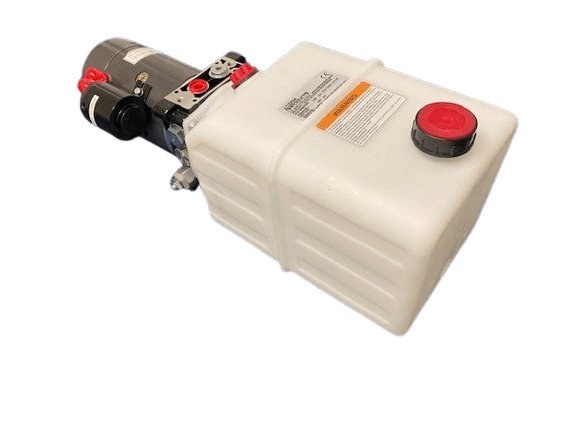

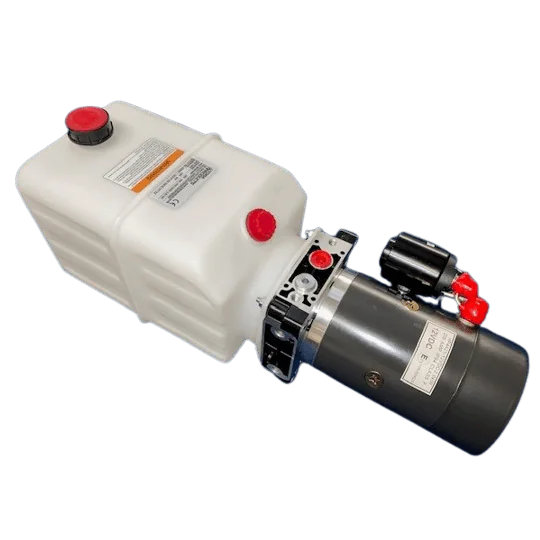

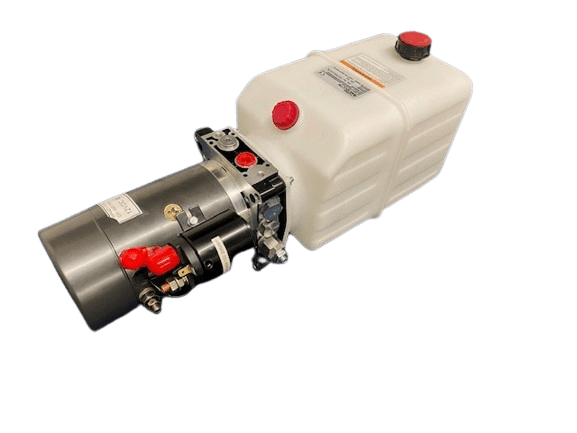

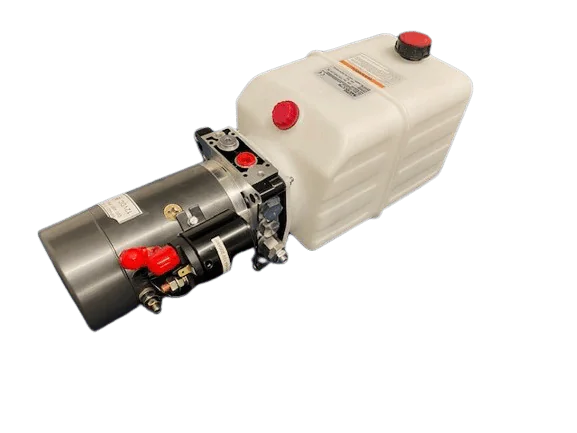

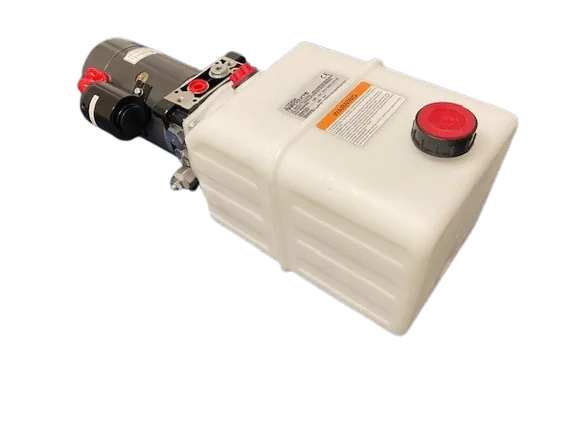

*Image for illustration purposes and may not be an exact representation of the item you receive.

Motor Voltage12V DC, 24V DC
Tank Size5 Litre, 8 Litre
