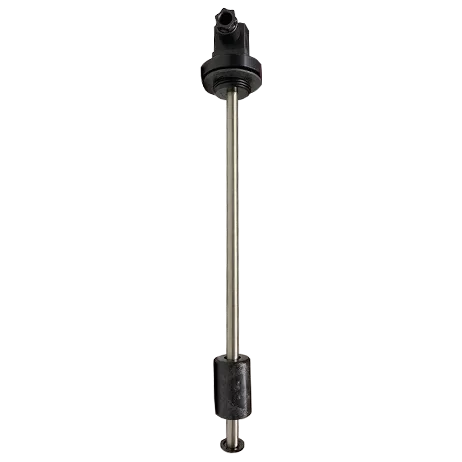

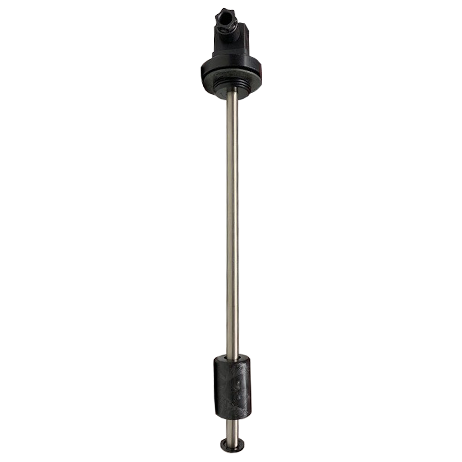

300mm Electrical Level Gauge PRODUCT CODE - NE1C300

Product Description

Electrical Level Gauges
Flange of Fastening: Anodized Aluminium

Thread Size: 1″ BSPP Male thread

Rod: Stainless Steel

Working Temperature: -10°C to +90°C

Electric Features: Electric connection according to DIN 43650
Electric protection according to DIN 40050: IP65
Electric Reed contacts in exchange
float

Maximum Load on the Electric Contacts: AC < 48 V – 0.5 A
DC < 48 V – 0.5 A
30VAC/VDC – 0.2 A

Installation Must be foreseen at least at 50mm from ferrous walls and far from magnetic fields
The Hydraulic Megastore has a huge range of accessories just like these electrical level gauges and we try our best to ensure that all of your needs are being met, so if there is anything you aren’t certain on don’t hesitate to ask us.
