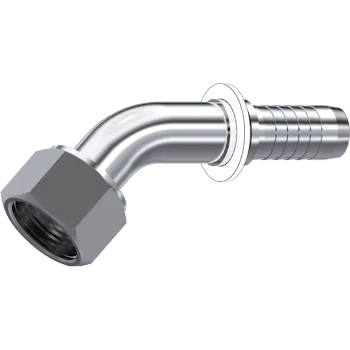

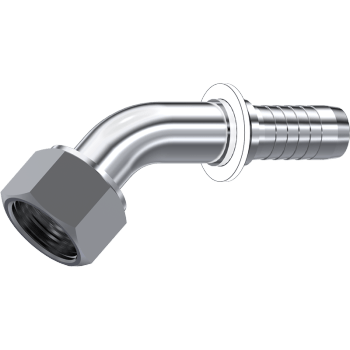

S.S. 45° ORFS SWIVEL FEM. 11/16-16 DN 3/8" PRODUCT CODE - SSD06ORF45S06

Manufacturer Code - 849081106

£53.42Ex. VAT£64.10Incl. VAT

QTY

The ORFS 45° Swept Swivel Female Hose Fitting is a specialised hydraulic fitting designed for use in high-pressure systems where optimal hose routing is essential. The 45-degree swept design offers a balance between the compactness of a straight fitting and the flexibility of a 90-degree fitting, making it ideal for systems with moderate space constraints.

Key Features

  • 45° Swept Design: The 45-degree bend provides improved hose routing while minimising stress on the hose and fitting, especially in applications where a full 90-degree bend is too sharp or unnecessary.
  • O-Ring Face Seal (ORFS): The O-ring face seal ensures a tight, leak-proof connection, making it suitable for hydraulic systems that operate under high pressure.
  • Swivel Functionality: The swivel feature allows for easier installation, alignment, and adjustment, reducing the risk of hose twisting or stress during assembly.
  • Double Hex Construction: The fitting is typically designed with a double hex, providing enhanced grip for installation and removal using standard tools.
  • Corrosion-Resistant Materials: ORFS fittings are available in corrosion-resistant materials, offering longevity and durability in demanding environments.
  • High Pressure and Temperature Resistance: Designed to handle the demands of high-pressure hydraulic systems, these fittings also perform reliably under extreme temperatures.

Benefits

  • Enhanced Hose Routing Flexibility: The 45-degree angle allows for better hose routing in tight or awkward spaces, providing a more gradual bend than 90-degree fittings.
  • Leak-Proof Operation: The O-ring face seal ensures a reliable and secure connection, preventing fluid leaks that could lead to pressure loss.
  • Simplified Installation and Maintenance: The swivel function allows for easier alignment during installation, ensuring that hoses can be connected without twisting or damaging the fitting.
  • Durability in Harsh Environments: The use of corrosion-resistant materials ensures that the fitting can withstand harsh environments.
  • Improved System Efficiency: By maintaining a secure and leak-free connection, the ORFS 45° swept swivel fitting helps maintain consistent hydraulic pressure.
  • Versatility Across Applications: This fitting is suitable for a wide range of hydraulic systems, making it a versatile choice across industries such as construction, agriculture, and industrial machinery.

We have a wide range of ORFS hose inserts available, click here to see our full range.

*Images are for illustration purposes only
